Results

The cutting layout will be displayed at the end of the optimization process.

Graphical display

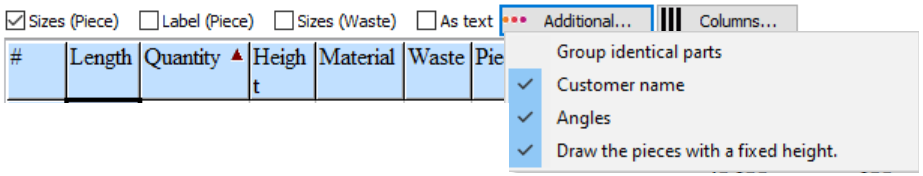

The user can choose what information to show in the Pieces column.

Also the user can choose what columns to display for the results table.

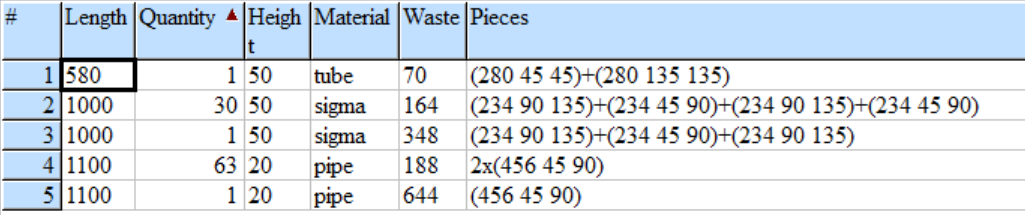

If As Text option is checked the results are displayed in text mode.

Various statistics about the current optimization are computed too.

The statistics contain:

The used pieces from Stock.
The used pieces from Parts.
The pieces resulted from the cut (waste of off cuts). If some of them have an angle different of 90 degrees they has to be shorten in order to have 90 degrees at both extremities. The length of those pieces is computed after this operation.
The order of cut. This is important when angles are different from 90 degrees.
Price of the parts.
etc
